180,000 lbs Portable Truck Axle Scale System with Indicator & Built-in Printer - Heavy Duty

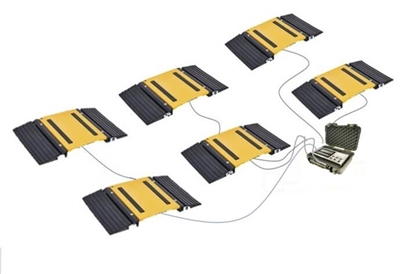

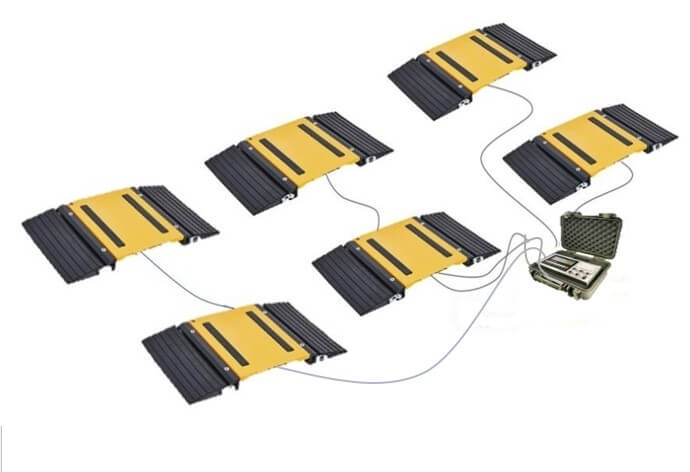

180,000 lbs Portable Truck Axle Scales

Alternative Views:
Our Price: $6,450.00
Ships Free UPS Ground


Free Shipping
: Scale Pads Ship by Freight. Indicator Ships by UPS
Product Code: PS60KWW-6


Delivery Options:

Storage Cart for 6 Weigh Pads:

Qty:
OVERVIEW PRODUCT VIDEOS

6 weigh pad portable truck axle scale system. Weigh and print truck axle weights on the go with this completely portable and sturdy truck axle scale. Scale Dynasty portable truck axle scales now come with ramps that provide an easier weighing approach for drivers! 60,000 lb per axle weighing in increments of 10 lbs!! Low profile and heavy duty weighing pads designed for weighing large vehicles such as trucks, tankers, vans and trailers. This system can be configured to suit any axle group or wheel spacing and is wide enough for dual tires. The rugged cast aluminum weighing pad is light enough to be portable yet large enough for any type of vehicle.

This portable truck axle scale weighs in increments of 10 lbs giving you more accurate weight readings!

Includes:
  • 3 Sets of portable weigh pads with handles and removable ramps (6 pads total)
  • 1 Indicator/readout display with built in printer
  • 1 roll of printer paper/ink
  • All Cables
  • Shipped in wood box. Optional metal storage container with wheels and handle can be added at checkout. 2 scale pads fit in the metal storage container and they will arrive in the metal storage container. You will get 3 carts total.
PLEASE NOTE: THE SCALE WEIGHING PADS SHIP VIA FREIGHT. THE ELECTRONICS SHIP BY UPS. YOU WILL RECEIVE 2 SHIPMENTS THAT MAY ARRIVE ON DIFFERENT DAYS.
Weigh Pad Specifications:
  • 180,000 lb Capacity. 60,000 lbs per axle, 30,000 lbs per weigh pad
  • Pre calibrated and ready to use.
  • Portable low profile scale pad with removable ramps. Our ramps provide an easier more gradual approach for drivers to drive onto the weighing surface!
  • Ramps are removable and are secured with 2 bolts per ramp. Ramps fold over when stored or can be removed (see video below)
  • Size: 24" x 16" x 2" (each scale) (wide enough for dual tires)
  • Indicator with internal rechargeable battery and built-in printer. A/C adapter included
  • 33' load cell cables
  • Prints total vehicle weight.
  • Heavy duty scale pads
  • Scale pad weight: 61 lbs each
  • Accuracy: This scale can be off by 50 lb for every 10,000 lbs
  • 100% overload protection
  • Strong aluminum scale base
  • Static Weighing Only. Does not weigh in motion
  • 2 year limited warranty on weigh pads

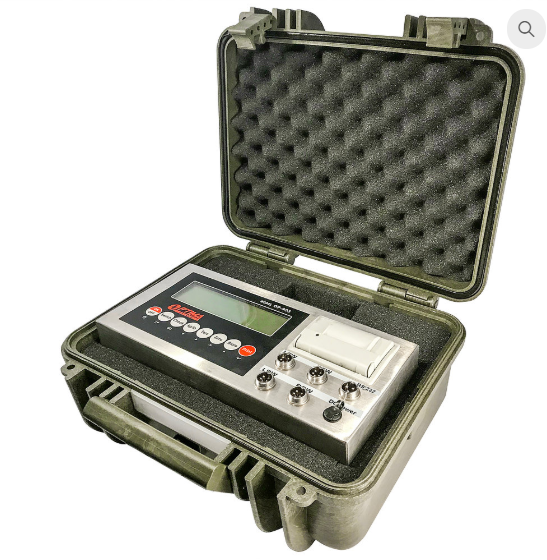

Indicator Features:

  • Size 18 x 15 x 8
  • Weight 15 lbs
  • Character type LCD display
  • Configurable A/D conversion rate
  • Power for 24 350 ohm load cells
  • Units: lb/kg
  • View per pad weight, total axle weight, accumulation mode
  • Printer with various printing formats
  • Truck and cargo ID configureable
  • Com ports: RS-232 x 1
  • External AC/DC adapter, built in rechargeable battery
  • ABS hard case for protection
