5,000 x 0.5 lbs Hanging S Type Crane Scale - USA Made
5000 lb crane scale made in the usa

Our Price: $520.00


Free Shipping
Product Code: TS-5000LB-TR-1-NK


Calibration Certificate*:

Power Supply :

Qty:
OVERVIEW

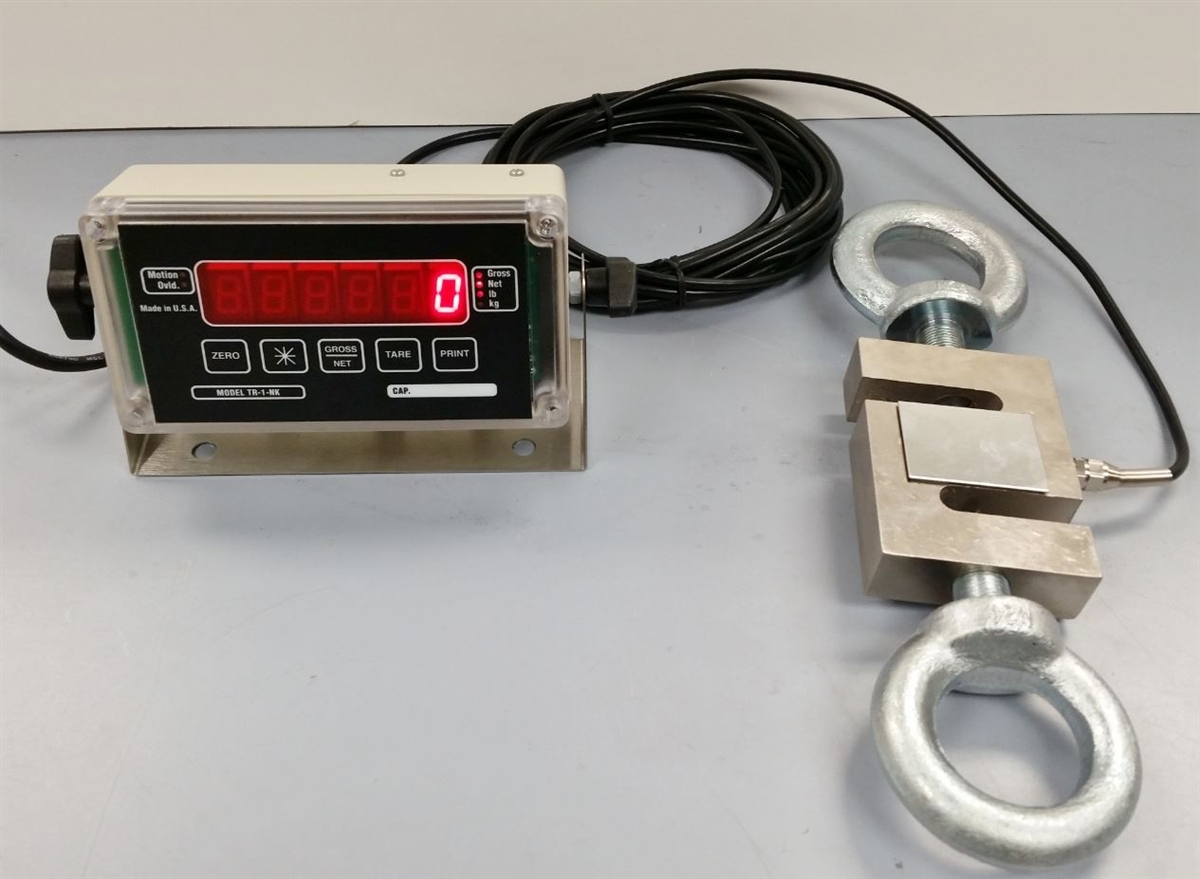

Full feature digital crane scale made in U.S.A. at our San Diego plant. Easy connection to all strain-gauge load cell scale systems with internal terminal block (no soldering required) keeps connections dry. Complete digital calibration with full range push button zero and tare. Display modes for display of NET weight or GROSS weight. Motion detection and automatic zero maintenance. Printer & continuous data output, and optional 4-20 ma analog output is available.

Calibrated on site and ready to use.
  • 5,000 lb x 0.5 lbs capacity
  • Made in U.S.A - Highly accurate
  • Read load weight at a safe distance with a 15' cable
  • Eye-bolts are removable. Eye-bolts have a 3/4-16 thread size
  • Tension weight only unless compression is specified at checkout
  • Calibrated before shipping
  • Water-resistant corrosion proof enclosure with adjustable stand/mount
  • Complete digital calibration
  • Full range push button zero
  • Full range auto-tare
  • Net/Gross display modes
  • Adjustable sample rate
  • Adjustable motion detection
  • Auto-zero tracking
  • Data output of Gross/Tare/Net
  • All push button control
  • Super bright LED display
  • Weigh light loads and heavy loads to a higher accuracy than other crane scales
  • 150% safe overload capacity
  • Power - 110v
  • Enclosure - ABS sealed 6.5”by 3.5”by 2.25”(without stand)
  • Load cell supply - 5 vdc with power for 6ea. 350 ohm cells
  • Load cell connection - 5 position terminal block (no soldering)
  • Resolution - 65,000 internal counts up to 50,000 displayed counts full scale (10,000 NTEP)
  • Accuracy - 0.1% of full scale
