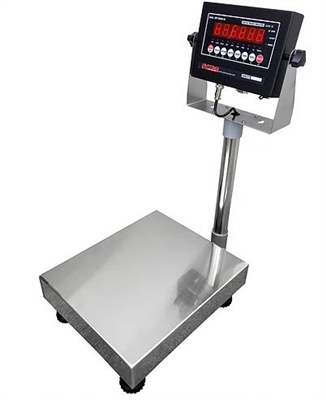

• Platform size: 12"x 12" x 4" (H)
• Ship Weight: 29 lbs
• Capacity range: 100 lb x 0.02 lb
• Mild steel platform, 304 stainless steel tray for easy cleaning
• Column height: 8". Can be removed to use wall mounting option
• Check weighing feature for quick portioning
• IP Rating: IP65
• Welded sturdy construction

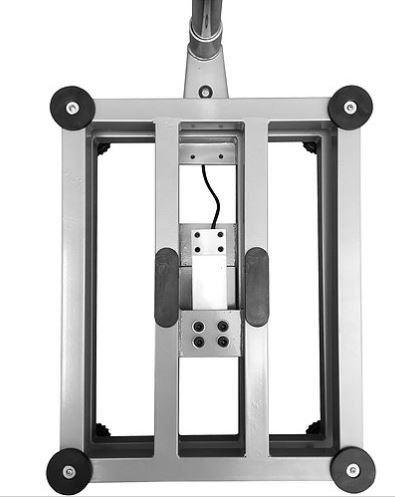

• High accuracy single point strain gauge aluminum load cells
• High resolution with overload protection
• 4 adjustable feet provide exceptional traction.
• Level bubble
• NTEP class III, 5000 divisions
• US Legal For Trade CC #: 11-016
• Canada Legal For Trade CC#: AM-5817
• Factory Calibrated
• Overload Protection
• 1 year warranty on parts
• Standard package includes: platform, shroud, indicator (Legal for Trade), load cells, column, level feet, and all necessary hardware

Indicator Features:

• NTEP indicator
• 1" Tall backlit display
• Operates on 110V AC adapter included. Add rechargeable battery under options, Indicator will come with both. Optional Rechargeable battery (up to 72 hrs)
• Metal casing
• Multiple weighing units: standard (lb/kg LED only) (lb/kg/g/oz/lb:oz LCD only)
• Gross/Tare/Pre-Set Tare/Zero
• Multiple Hold functions
• Count weighing
• Accumulation weighing
• Overload / Underload alarm
• Power saving mode
• Automatic date and time update
• Splash proof keyboard and display
• Connects to a remote display or printer
• Displays up to 50,000 graduations
• Full Duplex RS-232 Serial Port
• Stainless steel indicator for outdoor use available upon request

Specifications:

• Pan/Frame Material: Stainless Steel / Mild Steel
• Accuracy CLass (T-900): 5000 e
• Resolution: Display 30,000; ADC 2,000,000
• Zero Stability Error: TK0 < 0.1 µV//K
• Span Stability Error: TKspn < ±6 ppm//K
• Sensitivity (Internal): 0.3 µV/d
• Input Voltage: -30 ~ 30mV DC
• Excitation Circuit: 5 VDC, 4 wire connection (+Exec, -Exec, +Sig, -Sig); Maximum 6 x 350Ω load cells
• Power: AC100~250V; Rechargeable battery optional
• Temperature/Humidity: -10℃ ~ +40℃; ≤90%RH
• Storage Temperature: -40℃ ~ +70℃;
