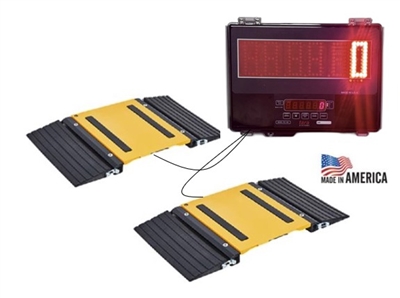

60,000 lbs x 10 lbs Portable Truck Axle Scale with Remote Display Indicator - Made in the USA
portable truck axle scale with large led display

Alternative Views:
Our Price: $4,000.00
Sale Price: $3,500.00
Ships Free UPS Ground


Free Shipping
Product Code: TS-60KWW-SU


2 Additional Weigh Pads:

Storage Cart for 2 Pads:

Storage Cart for 4 pads:

Qty:
OVERVIEW PRODUCT VIDEOS

Portable truck axle scale with large remote display indicator made in the USA. Scale Dynasty portable truck axle scales now come with ramps that provide an easier weighing approach for drivers! Low profile and heavy duty axle weighing pads designed for weighing large vehicles. This system can be configured to suit any axle group or wheel spacing. This rugged cast aluminum weighing pad is light enough to be portable yet large enough for any type of vehicle. Add up to 1 more sets of pads for a total of 4 pads (30,000 lb ea pad/60,000 lb per axle).

Portable truck axle scale includes:
  • 1 Set of portable weigh pads with handles and removable ramps
  • 1 Made in the USA Indicator with 3" tall "Super Bright" LED digits - 110V Power source required
  • Two 30' Steel braided load cell cables with protective cover
  • Not legal for trade
PLEASE NOTE: THE SCALE WEIGHING PADS SHIP VIA FREIGHT. THE ELECTRONICS SHIP BY UPS. YOU WILL RECEIVE 2 SHIPMENTS THAT MAY ARRIVE ON DIFFERENT DAYS.

Portable Truck Scale Weigh Pad Specifications:
  • 60,000 lbs x 5 lbs
  • Calibrated and ready to use
  • Yellow coated scales pads for better visibility
  • Portable low profile scale pad with removable ramps. Our ramps provide an easier more gradual approach for drivers to drive onto the weighing surface!
  • Ramps are removable and are secured with 2 bolts per ramp. Ramps fold over when stored or can be removed (see video below)
  • Set includes 2 scales (30,000 lb per pad. More weighing pads can be added
  • Size: 24" x 16" x 2" (each scale) Wide enough for dual tires
  • Accuracy: This scale can be off by 50 lb for every 10,000 lbs
  • Heavy duty scale pads
  • Each pad weighs approximately 61 lbs
  • 100% overload protection
  • Package configured and calibrated with 4000 divisions
  • Static Weighing Only. Does not weigh in motion
  • 2 year MFG limited warranty on weigh pads
Indicator Specifications:

  • USA Made remote display indicator with 3" tall LED digits
  • Gross/Tare/Net Weight
  • Power: 110v/120v required
  • 100' cable from scale weigh pads
  • Large display for easy viewing outdoors.
  • Display: High brightness LED digits - 6" tall digits
  • Complete digital calibration with full range push button zero and tare.
  • Reads in LBS. KG upon request
  • Display modes for display of NET weight or GROSS weight
  • Temperature: 0-40c operating range
  • Resolution: 1 part in 60,000 internal
  • Input:0 to 3 millivolts per volt
  • Weatherproof and sealed for outdoor use
  • 1 Year warranty
