High Intensity Outdoor Remote Display - 3" Tall Digits - Made in the USA - Weatherproof

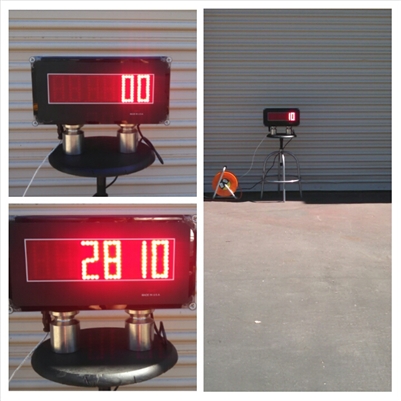

Remote display

Alternative Views:
Our Price: $1,250.00


Free Shipping
Product Code: RM-3
Qty:

OVERVIEW

Superbright LED remote displays with Auto-Learn feature for easy installation with any scale indicator that has data output. If you will be connecting this to a Fairbanks or Mettler-Toledo unit please indicate in the notes section at checkout.

Large 3" tall digits viewable over 75 feet even in bright sunlight.

The model RM-3 remote display is a versatile outdoor remote display for all types of weighing environments. The Ultra-bright LED display is all solid-state and has no parts to repair or replace. The lights are of the same type that are being used in automotive and traffic signal applications. The RM-3 has large 3 inch tall digits that can be seen in bright sun at a distances over 75 feet.

The standard features provide for easy setup. The unit will learn the baud rate and data bits of the sending unit, and configure itself to receive and display the correct weight data. When data is received, the first group of numbers will be pulled out and displayed. If more than 6 digits are received, the display will show the least significant 6 digits. If a decimal point is detected, it will be displayed in the correct location. If a minus sign is detected, the minus sign will be displayed in front of the least significant 5 digits. Standard RS232 from 300 to 9600 baud rates, and 20ma current loop (Passive and Active) can be used.

APPLICATIONS:

  • Truck scales
  • Fertilizer blending tanks
  • Batching hoppers
  • Feed milling and mixing
  • Hopper scales
  • All general purpose weighing

FEATURES:

  • NEMA 4X non-metallic enclosure for harsh environments.
  • Automatic learn for quick setup.
  • RS232 - 20ma & optional RS485
  • Connects via Terminal block
  • High brightness LED can be seen in direct sunlight at distances up to 200 feet.
  • Long life - NO moving parts.
  • 3 INCH 75 foot visibility.
  • 6 INCH 200 foot visibility
  • 120 volt operation
  • 12 volt DC models available
  • No Maintenance

SPECIFICATIONS:

  • Power .............................120vac +- 10% 120 watts typical 220vac optional - 12 volt DC optional
  • Enclosure ........................NEMA 4X watertight and corrosion proof polycarbonate

RM-6 23” by 12” by 5”
RM-3 14” by 6 1/2” by 4”
with screw on mounting ears for wall or pole mounting.

  • Display ...........................High visibility ultra-bright LED - 6 digits
  • Baud rate.........................300 to 9600 automatic selection.
  • Data input .......................Standard ASCII characters.
  • Interface...........................RS232, 20ma current loop (Optional RS422.485)
  • Operating temperature ....0-40c
  • Humidity..........................0 to 80% non-condensing
